Mexico Popular R72 R101 O100 O725 Trapezoidal Corrugated Double Layler Roof Sheet Roll Forming Machine

Name: Mexico Popular R72 R101 O100 O725 Trapezoidal Corrugated Double Layler Roof Sheet Roll Forming Machine
Brand: Sussman
Price: 1 USD

Quality Mexico Popular R72 R101 O100 O725 Trapezoidal Corrugated Double Layler Roof Sheet Roll Forming Machine wholesale

Brand Name : Sussman

Model Number : SM-RP

Certification : CE ISO SGS

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 65 days after deposit

Packaging Details : Standard packing

Type : Mexico Double Layer Roll Forming Machine

Main Motor Power : 7.5kw

Way Of Drive : 1.2 inch single chain

Working Speed : 10-12 meters /minute

Contact Now

Mexico Popular R72 R101 O100 O725 Trapezoidal Corrugated Double Layler Roof Sheet Roll Forming Machine

The normal machinable thickness range of our roof panel roll forming machine is 0.3mm-0.8mm, working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We design the machine according to your drawing, specially the pitch and height of each wave. This machine is used to form the pre-painted sheet/GI material to various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.

Technical parameter:

Rolling Speed: 0-10m/min

Feeding width: 1000mm

Steel sheet Thickness: 0.12-0.3mm galvanized sheet

Control System: PLC Siemens

Roller Stations: about 22-24 stations

Roller Material : 45# forge steel, coated with chrome

Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching

Motor Power: 7.5kw main motor

Hydraulic power: 3kw

Hydraulic Pressure: 12Mpa

Tolerance: +1.5mm

Power supplier: According to Customer’s Requirements

Way Of Drive:1.2 inch single chain

Machine List

Machine list	5 tons hydraulic de-coiler	1 set
	Main roll forming machine	1 set
	PLC Control box	1 unit
	Hydraulic station	1 unit
	Safety cover	1 set
	Spare parts	1 set

working flow

Mexico Popular R72 R101 O100 O725 Trapezoidal Corrugated Double Layler Roof Sheet Roll Forming Machine

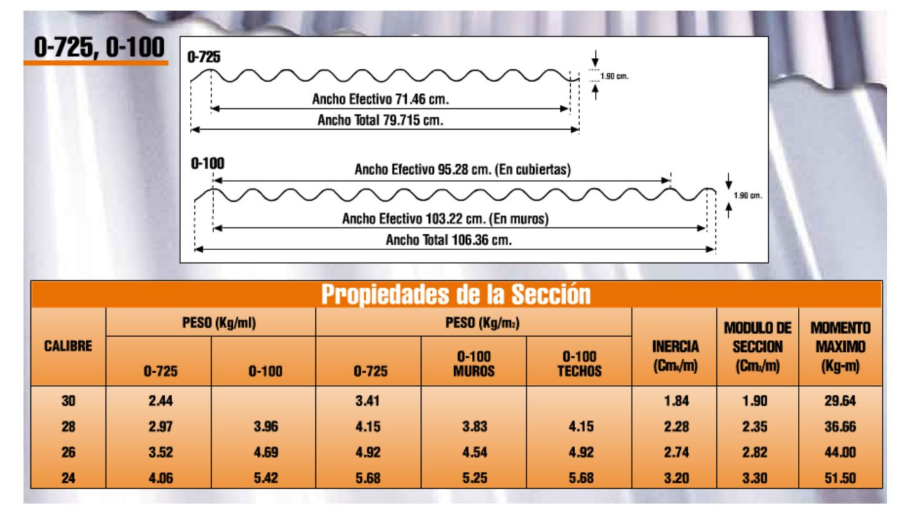

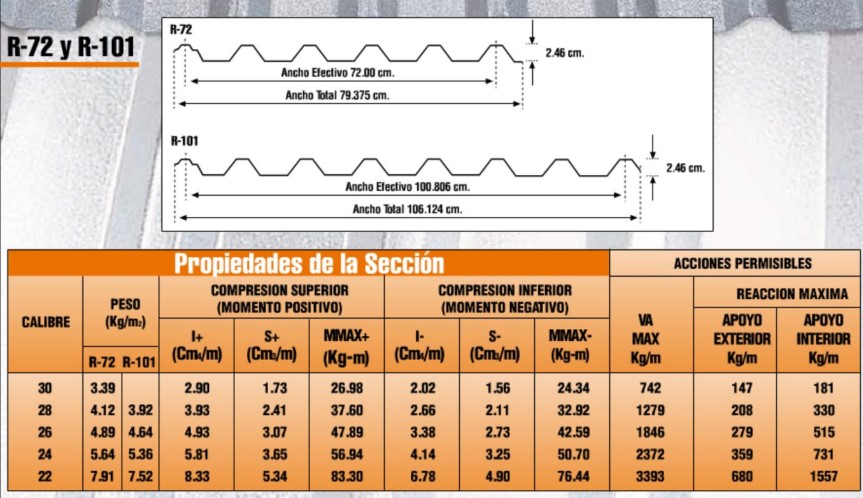

Profile Drawing

Mexico Popular R72 R101 O100 O725 Trapezoidal Corrugated Double Layler Roof Sheet Roll Forming Machine

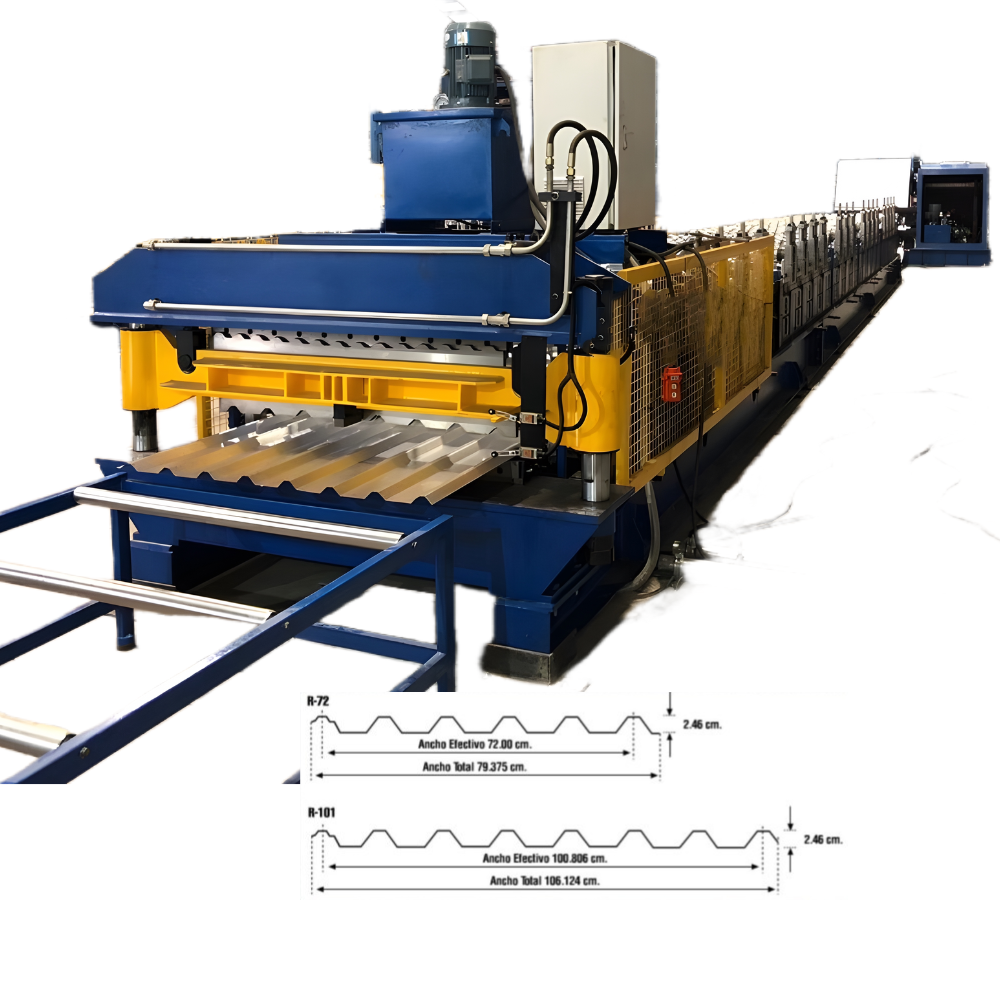

Machine Shows

Mexico Popular R72 R101 O100 O725 Trapezoidal Corrugated Double Layler Roof Sheet Roll Forming Machine

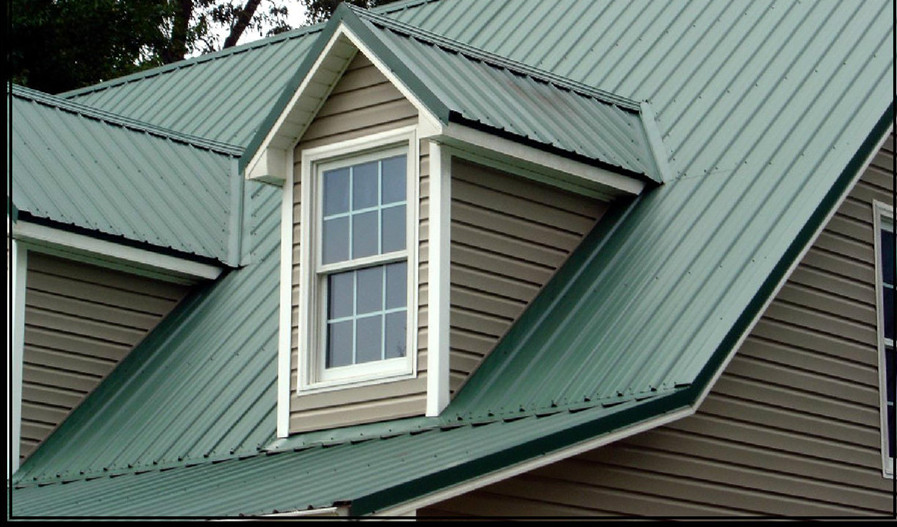

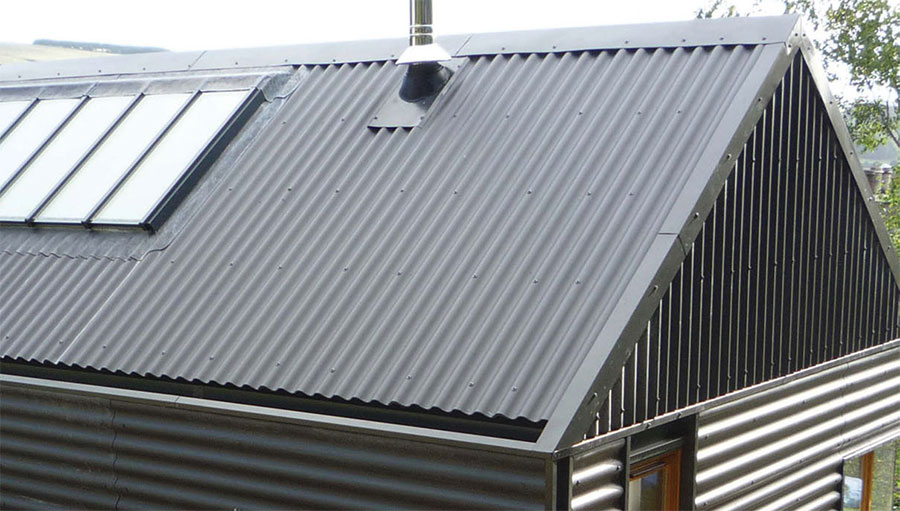

Application:

Product Tags:

Mexico Popular R72 R101 O100 O725 Trapezoidal Corrugated Double Layler Roof Sheet Roll Forming Machine Images
