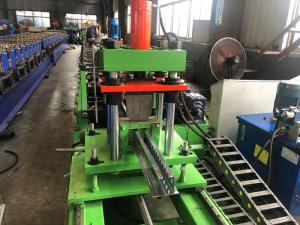

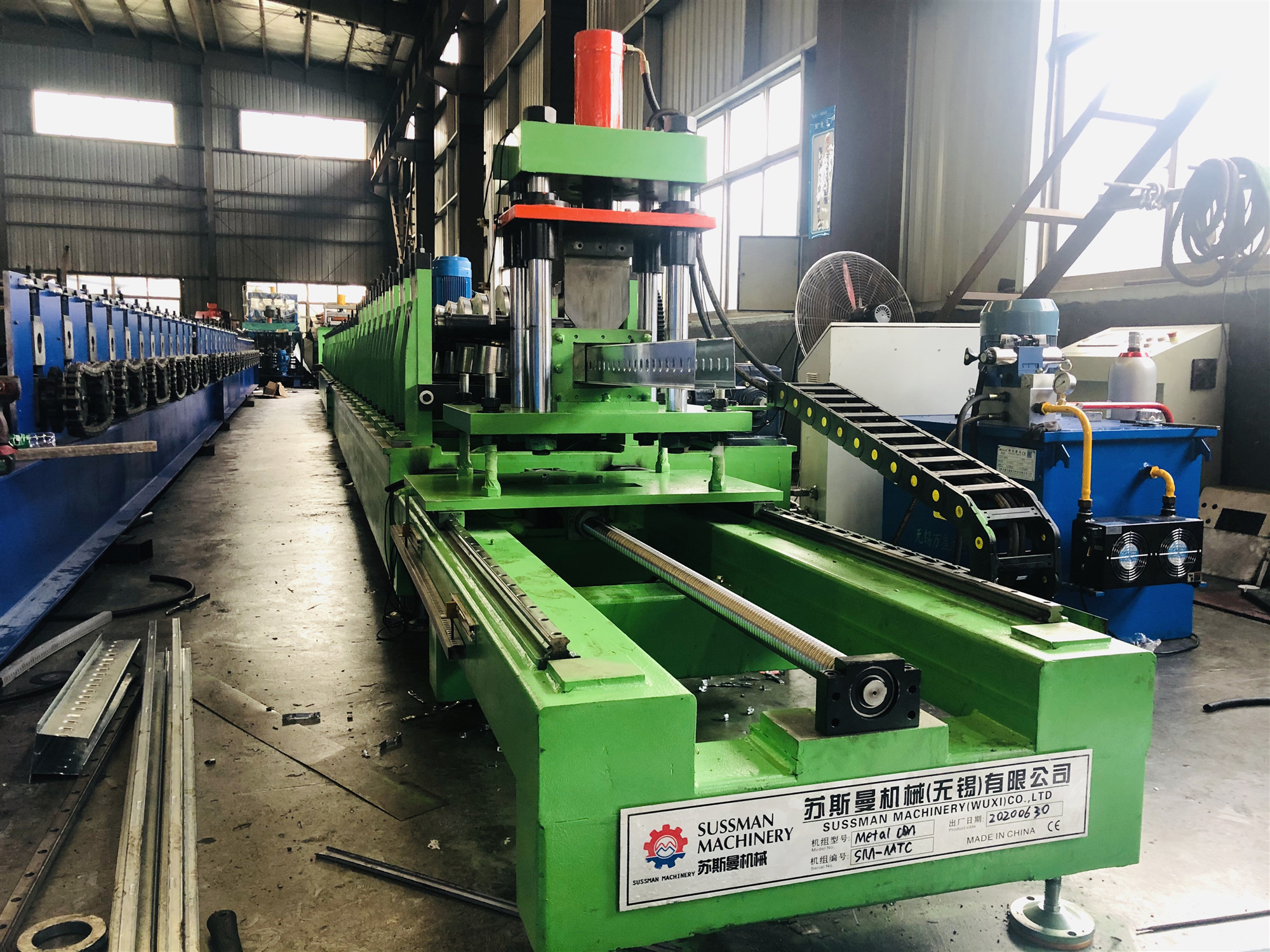

1.5mm thickenss Galvanized VIGACERO deck floor beam Roll Forming Machine with servo following cutting
1. Cutting way:
(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.
(2) Material of blade: CR12 with heat treatment
(3) Length measuring: Automatically
(4) Tolerance of length: + 1.5mm
(5) In order to get the perfect profiles, we recommend the post hydraulic cutting by changing the cutting moulds. It is easy to operate.
(1) Power supplier: 220V, 60 Hz, 3Phase (adjusted with the request )
(2) Length & quantity measurement automatically;
(3) Length & quantity controlled by PLC,
(4) Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7) The language in the touch screen: English and Chinese
(8) Unit of length: millimeter (switched on the control panel)
| | Items | Specifications | Remarks |
| Material of coil | Material Thickness | 1.5mm galvanized | |
| Un Coiler | 3 tons manual | |
| Forming system | Rolling Speed | 10 m/min | |

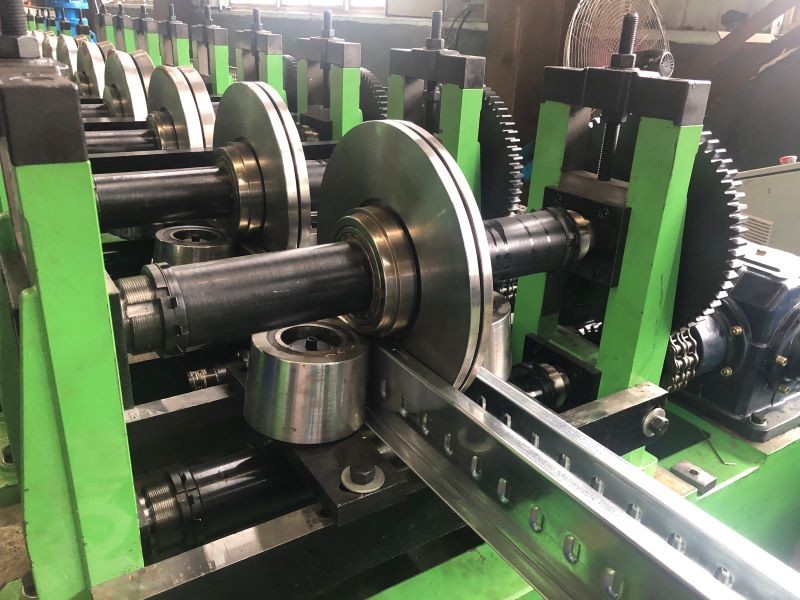

| Roller Stations | About 24 stations | |
| Roller Material | 45# Steel with quenching 60mm shaft | |
| Maim Motor Power | 7.5 kw | |
| Hydraulic cutting Power | 4 kw | |
| Cutting system | Material Of Cutting | CR12 with quench treatment | |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source | 220V, 60HZ,3 phase Also can satisfy Customer’s require | |
| Control System | PLC (Panasonic) as list in the note | |
| | Weight | About 5.5 tons | |
| | Way Of Drive | 1 inch single chain | |
| | Size of machine | Length 9000mm* Width 600mm* Height 1000mm | |

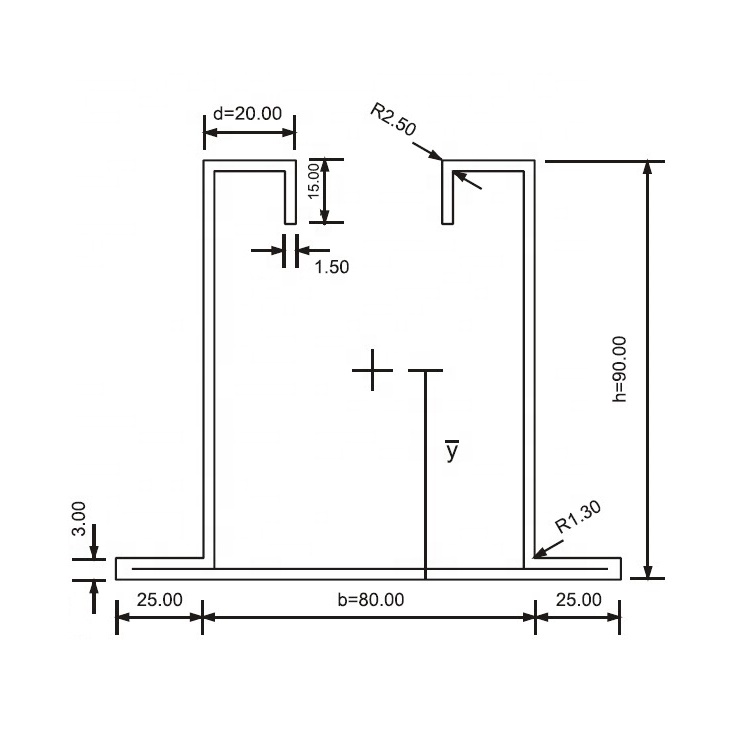

2. Profiles
